Native Instruments Maschine MK3

SYSTEM REQUIREMENTS
macOS 10.12, 10.13, 10.14 (latest update), Intel Core i5, 4GB RAM
Windows 7, 8, or 10 (latest Service Pack, 64-bit only), Intel Core i5 or equivalent CPU, 4 GB RAM
Additional Requirements

• USB 2.0 Port, 9 GB free disk space for MASCHINE software and MASCHINE Library, 33 GB free disk space for KOMPLETE 12 SELECT.
• An Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate MASCHINE software. Once installed and activated, all products can be used offline.

ADDITIONAL INFO

• Supported Interfaces: Stand-alone, VST2 (64-bit), Audio Units (64-bit), AAX 64, ASIO, CoreAudio, and WASAPI.
• MASCHINE requires activation: Activate using the serial number on the flyer inside the box.
• In case of graphics issues, please install the latest drivers for your GPU. This can be necessary even if Windows reports them as up to date.
• MASCHINE software, MASCHINE Factory Library, and KOMPLETE 12 SELECT are provided as downloads after registration — an Internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate the software. Once installed and activated, all products can be used offline.

DIMENSIONS AND WEIGHT
Width: 320 mm / 12.6", Length: 301 mm / 11.85", Height: 41 mm / 1.61", Weight: 2.2 kg / 4.85 lbs
SETUP EXAMPLES
MASCHINE fully integrated into a DAW. MASCHINE software delivers advanced MIDI CC control. Create detailed automation lines in your host – MASCHINE stays locked to every tweak, pan, and fader ride.
MASCHINE connected to laptop as all-in-one production system with monitors connected to the built-in audio interface.
MASCHINE connected to laptop with headphones for beat making or performance on the road.
MASCHINE setup for recording with a microphone plugged into the audio interface. The headphones are plugged into the built-in audio interface for cueing.
MASCHINE ready to record an analog synth and a modular synth hooked up via the audio interface's line inputs.
MASCHINE, MASCHINE JAM, and KOMPLETE KONTROL work together perfectly as a unified production ecosystem.
MASCHINE connected to one laptop and synced to another running TRAKTOR PRO 2 via Link.
MASCHINE fully integrated into a DAW. MASCHINE software delivers advanced MIDI CC control. Create detailed automation lines in your host – MASCHINE stays locked to every tweak, pan, and fader ride.
MASCHINE connected to laptop as all-in-one production system with monitors connected to the built-in audio interface.
FEATURES AND SPECIFICATIONS

• Integrated hardware/software system includes sampler, arranger, mixer, sound library, FX, and more
• 8 GB MASCHINE library with samples, one-shots, sliced loops, sampled instruments, drums synths, presets, patterns, drum kits, and songs
• Includes 45 GB KOMPLETE 12 SELECT library
• 25 pro-quality studio and creative FX including filter, EQ, delay, reverb and compressor
• 2 high-resolution RGB color displays for precision sample slicing, sound tweaking, note editing, mixing, browsing, and more
• 16 large, ultra-sensitive pads make two-handed drumming easy
• Pro-grade, 96 kHz / 24-bit audio interface with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch
• 8 touch sensitive knobs for parameter tweaking

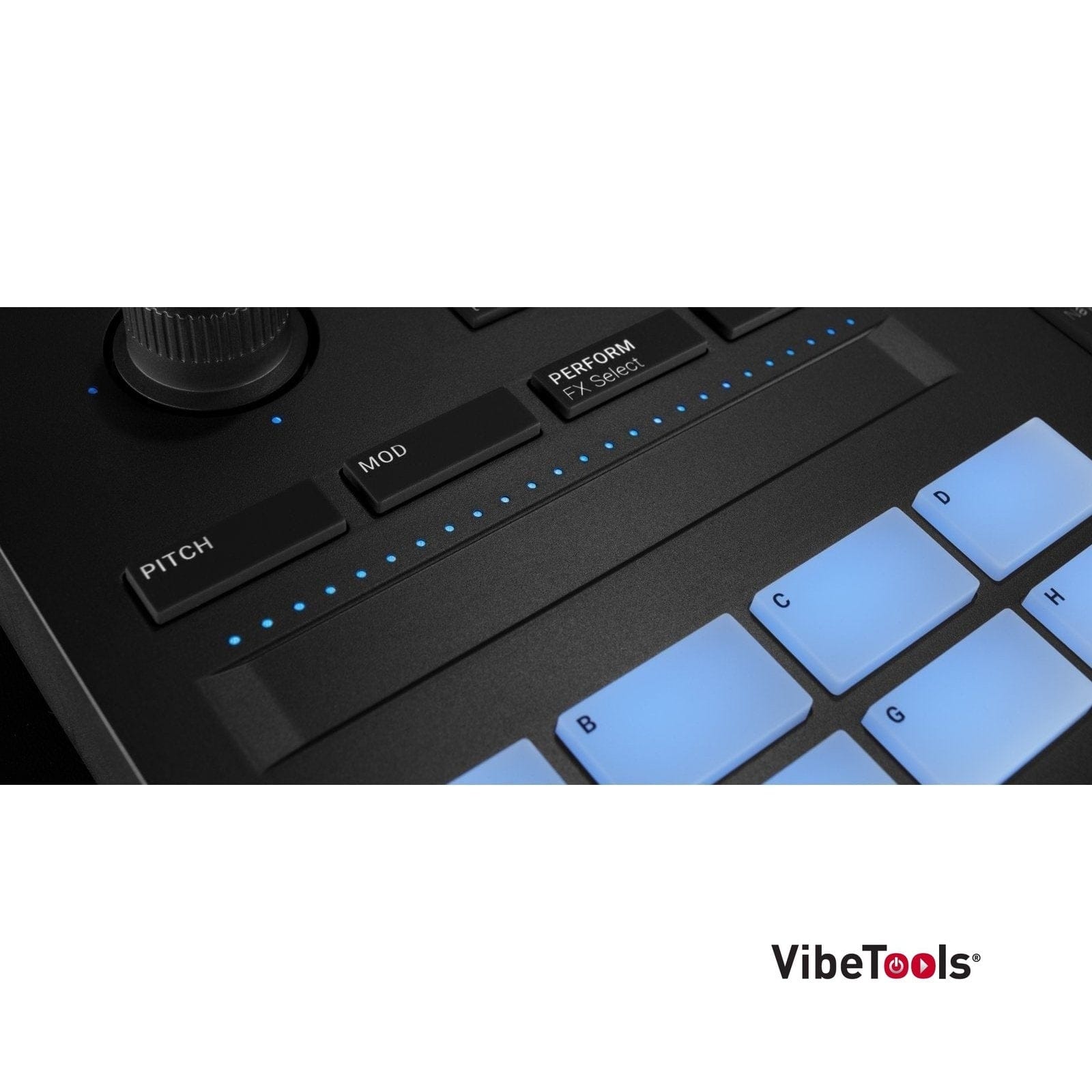

• Smart Strip for strumming notes, pitch bending sounds, performing with FX, and more
• Four-directional push encoder for browsing, navigating, adjusting levels and balance
• Powered via USB 2.0 or with the included 15V 1.2A power supply unit
• Seamless integration with KOMPLETE, NKS-ready instruments, MASCHINE Expansions, and the new KOMPLETE KONTROL S49/S61 Keyboards
• Classic groovebox features including 16 velocity levels, swing, pad link, note repeat, step sequencer, and vintage MPC 60/SP 1200 sampling emulation
• Compatible with all major DAWs (including Ableton Live, Logic Pro, Cubase, GarageBand, FL Studio, Avid Pro Tools, PreSonus Studio One, and more) as a VST, Audio Units, or AAX 32 and AAX 64 plug-in with full multi-core support

AUDIO INTERFACE SPECIFICATIONS
All results measured in accordance with the Audio Engineering Society’s AES17 standards.

Line-In
Full Scale Level	+18,6 dBu
Dynamic Range	100 dB
THD+N	0.003 %
Frequency Response:	20Hz-20kHz +/- 0.1 dB
Crosstalk L/R	-96 dB
Mic Input (max gain)
Full Scale Level	-32 dBu
Dynamic Range	90 dB
THD+N	0.01 %
Frequency Response:	20Hz-20kHz +/- 0.4 dB
Mic Input (min gain)
Full Scale Level	-3.4 dBu
Dynamic Range	102 dB
THD+N	0.004 %
Frequency Response:	20Hz-20kHz +/- 0.15 dB
Line Out
Maximum Output Level	+18.0 dB
Dynamic Range	102 dB
THD+N	0.003 %
Frequency Response:	20Hz-20kHz +/- 0.5 dB
Crosstalk L/R	-100 dB
Headphone Out
Maximum Output Level	29.4 mW @ 33 Ohm load
Dynamic Range	102 dB
THD+N	0.007 %
Frequency Response:	20Hz-20kHz +/- 0.35 dB
Crosstalk L/R	-60 dB
