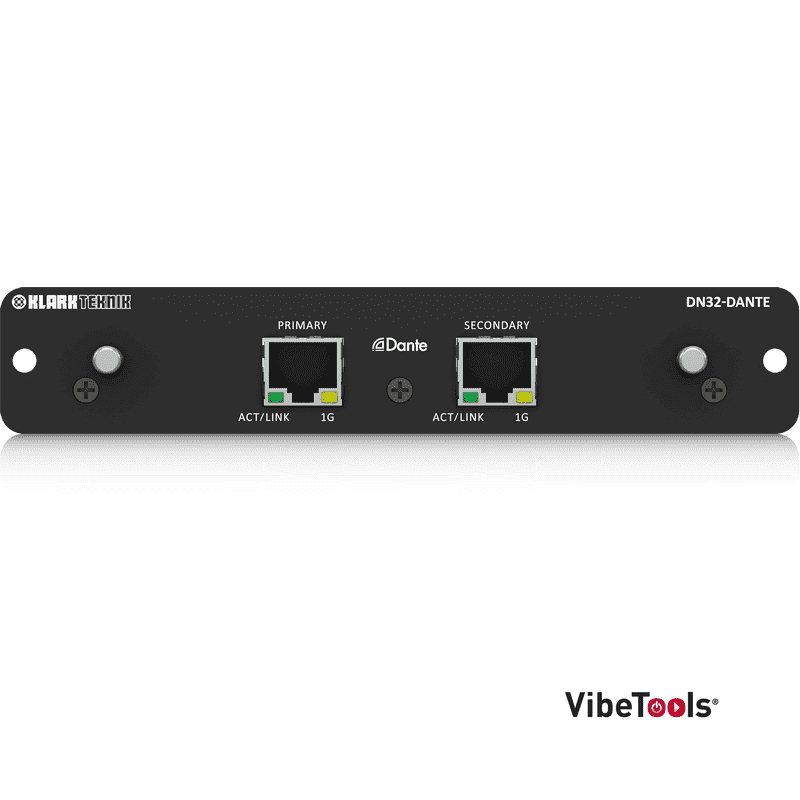

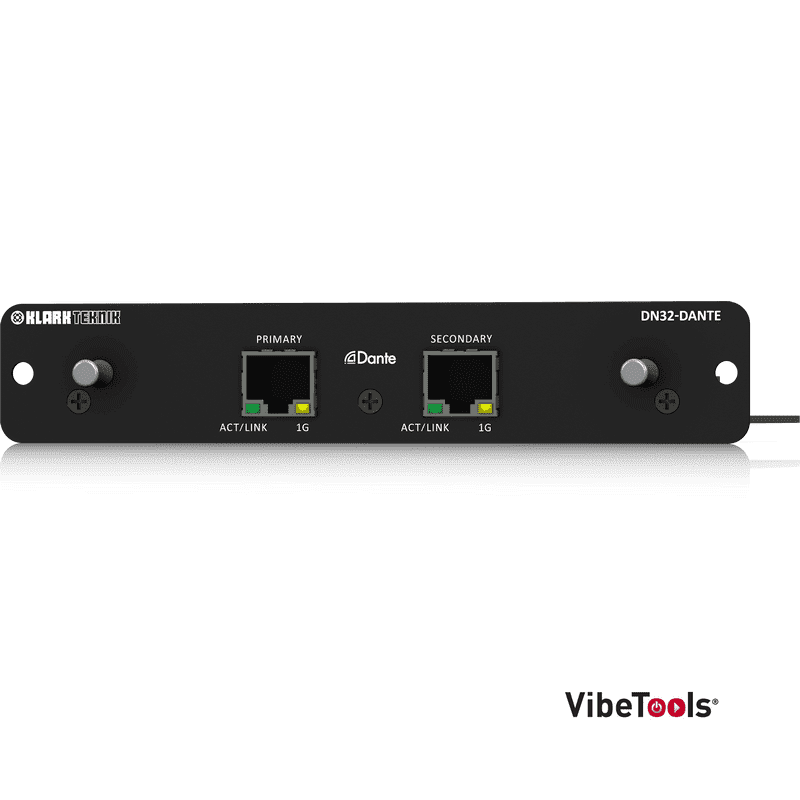

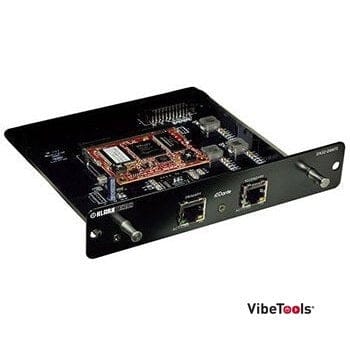

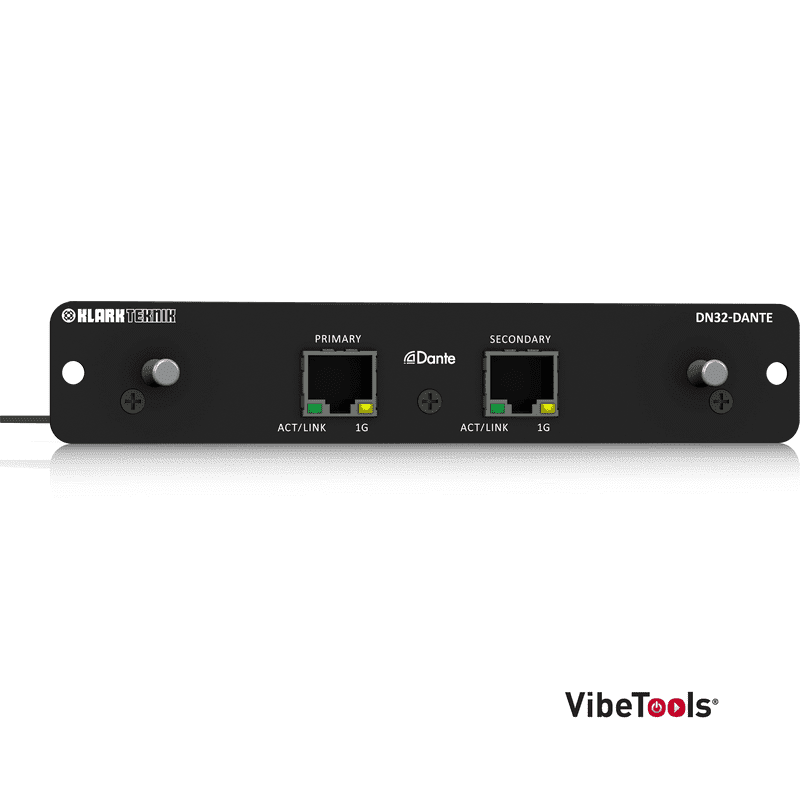

Klark Teknik DN32-DANTE
DN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote contro...
DN32-DANTE features two Gigabit Ethernet ports connected through an internal switch. This allows the simultaneous merging of Ethernet remote control data for your console with bidirectional multichannel audio streams on the same cable.
When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection, and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches.
The Dante Virtual Soundcard application, which is available for PC and Mac computers, allows streaming to and from Dante enabled devices on a networked personal computer – including remote recording or playback over standard IP infrastructure. Live recordings of up to 64 channels are possible by receiving signals from more than one mixing console.
Windows WDM and ASIO, and Mac OS X Core Audio are supported to ensure low-latency signal handling by your PC.
DN32-DANTE
Audinate Dante Expansion Module with up to 32 Bidirectional Channels
Connectors 2 x RJ45, Gigabit Ethernet 1 GBit/s, primary and secondary
Inputs and Outputs Input / Output Channels: 32 / 32
Sample Rates 44.1 / 48 kHz
Bit Depth 24-bit PCM
Clock Clock Synchronization, Onboard High-Quality Dante Network Clock, Based Upon IEEE1588 PTP (Precision Time Control): Console "Local" or Dante network clock "DN32-DANTE"
Latency System Audio Latency: 0.25, 0.5, 1.0, or 5.0 ms (depending on Dante Controller network configuration)
Gigabit Ethernet Port Dual-input Gigabit Ethernet Ports: Ethernet Switch mode or Dante Redundancy mode
Indicators Ethernet Link, LED Indicator in Socket: 2 LED, green - flashes with network activity
1 Gbit/s Ethernet Link: 2 LED, amber - LED indicator in socket
System Requirements Dante Controller App
PC Hardware (Minimum)
CPU: 1 GHz
RAM: 512 MB
Display: 1024 x 768
Wired Ethernet interface
Windows Applications (ASIO and WDM Audio Device Interface)
XP SP3 32-bit
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9
Dante Virtual Soundcard
PC Hardware (Minimum)
CPU: Dual Core
RAM: 1 GB
Wired Ethernet interface, 1 GB/s required for channel counts higher than 32 x 32 @ 48 kHz
Windows Applications (ASIO and WDM Audio Device Interface)
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9
When both the primary and secondary interfaces are connected, the secondary serves as a redundant connection, and is automatically activated should the primary connection become unavailable. Please note that Dante runs Gigabit or 100 MBit/s network infrastructure and requires QoS capable switches.
Computer Audio Interface Option
The Dante Virtual Soundcard application, which is available for PC and Mac computers, allows streaming to and from Dante enabled devices on a networked personal computer – including remote recording or playback over standard IP infrastructure. Live recordings of up to 64 channels are possible by receiving signals from more than one mixing console.
Windows WDM and ASIO, and Mac OS X Core Audio are supported to ensure low-latency signal handling by your PC.
DN32-DANTE
Audinate Dante Expansion Module with up to 32 Bidirectional Channels
- Audinate Dante* expansion module for MIDAS and BEHRINGER digital consoles
- Up to 32 bidirectional channels @ 48 kHz
- Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer)
- Primary and secondary Ethernet interfaces for dual-redundant Dante networking
- Operates from internal Dante network Precision Time Protocol (PTP) clock
- Optional Dante Controller software for remote configuration (PC or Mac* computer)
- LED indicators monitor network activity and speed
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Connectors 2 x RJ45, Gigabit Ethernet 1 GBit/s, primary and secondary
Inputs and Outputs Input / Output Channels: 32 / 32
Sample Rates 44.1 / 48 kHz
Bit Depth 24-bit PCM
Clock Clock Synchronization, Onboard High-Quality Dante Network Clock, Based Upon IEEE1588 PTP (Precision Time Control): Console "Local" or Dante network clock "DN32-DANTE"
Latency System Audio Latency: 0.25, 0.5, 1.0, or 5.0 ms (depending on Dante Controller network configuration)
Gigabit Ethernet Port Dual-input Gigabit Ethernet Ports: Ethernet Switch mode or Dante Redundancy mode
Indicators Ethernet Link, LED Indicator in Socket: 2 LED, green - flashes with network activity
1 Gbit/s Ethernet Link: 2 LED, amber - LED indicator in socket
System Requirements Dante Controller App
PC Hardware (Minimum)
CPU: 1 GHz
RAM: 512 MB
Display: 1024 x 768
Wired Ethernet interface
Windows Applications (ASIO and WDM Audio Device Interface)
XP SP3 32-bit
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9
Dante Virtual Soundcard
PC Hardware (Minimum)
CPU: Dual Core
RAM: 1 GB
Wired Ethernet interface, 1 GB/s required for channel counts higher than 32 x 32 @ 48 kHz
Windows Applications (ASIO and WDM Audio Device Interface)
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9
