Audient iD4 (MKII) 2in | 2out Audio Interface
Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD4’s Audient mic pre will give you the professional sound you deserve. iD4’s converters make sure you hear every nuance, every detail of your audio, letting you hear your mix more accurately. Work faster, make better creative decisions and experience professional audio performance from your desktop.

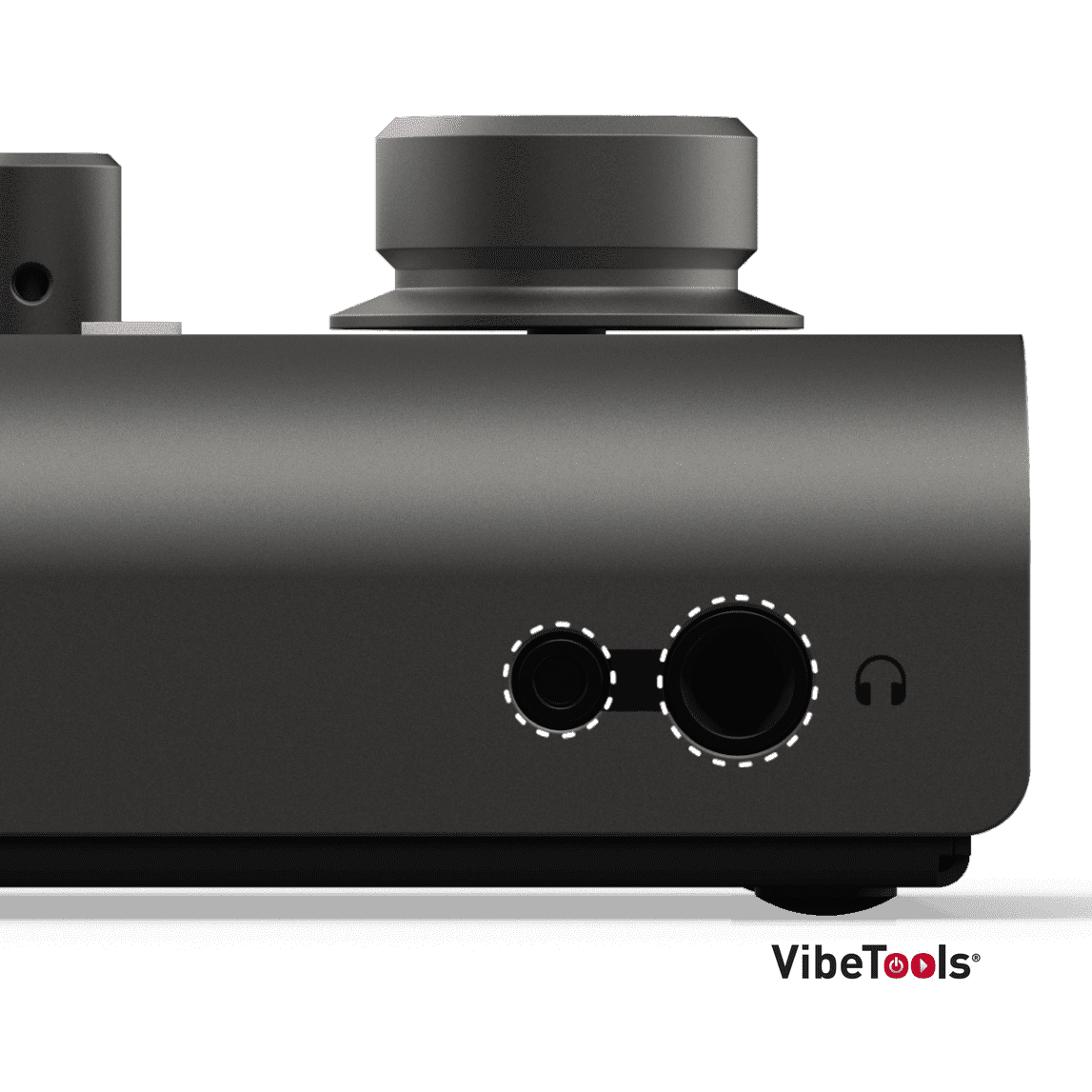

Equipped with both a jack and mini jack connection and a powerful headphone amp capable of driving headphones up to 600Ohms, iD4 is ready to take on the most demanding recording sessions.
Designed to replicate the input stage of a classic valve amplifier, iD4’s harmonically rich JFET Instrument Input is the perfect sonic foundation for your guitar or bass.
D.I / Instrument Input
RANGE: | 40dB |
LINEUP: | 12dBu = 0dBFS |
THD+N @ 0dBu: | 0.1% |
SNR: | 100dBu A-Weighted |
FREQUENCY RESPONSE – MIN GAIN | ±0.5dB 10Hz to 20kHz |
Microphone preamplifier
GAIN RANGE: | 58dB |
LINEUP: | 12dBu = 0dBFS |
MIC MAX INPUT LEVEL: | 12dBu |
MAX INPUT LEVEL: | 21dBu |
INPUT IMPEDANCE (Mic): | 2.8k |
INPUT IMPEDANCE (Line): | >8k |
THD+N @ 0dBu | 0.00170% |
THD+N @ 0dBu MAX GAIN: | <0.04% |
SNR: | 101dBu A-Weighted |
EIN: | 129dB A-Weighted |
CMRR @ 1k: | >75dB |
FREQUENCY RESPONSE – MIN GAIN | ±0.5dB 10Hz to 40kHz |
Analogue to Digital Converter
THD+N @ -1dBFS: | 0.001% |
DYNAMIC RANGE: | 120dB A-Weighted |
FREQUENCY RESPONSE: | ±0.5dB 10Hz to 40kHz |
Line Outputs (DAC):
LINEUP: | 12dBu = 0dBFS |
THD+N @ -1dBFS: | 0.0006% |
DYNAMIC RANGE: | 125.5dB A-Weighted |
CROSSTALK: | >120dB |
FREQUENCY RESPONSE: | ±0.1dB 10Hz to 40kHz |
1/4” TRS JACK: | Tip (Hot), Ring (Cold) & Sleeve (Shield) |
Headphone Outputs:
LINEUP: | 18dBu = 0dBFS |
THD+N @ -1dBFS: | 0.0009% |
DYNAMIC RANGE: | 125.5dB A-Weighted |
CROSSTALK: | >116dB |
FREQUENCY RESPONSE: | ±0.1dB 10Hz to 40kHz |
MAXIMUM LEVEL @ 30R: | 2.59V Peak, 1.827V RMS, 223mW |
MAXIMUM LEVEL @ 62R: | 4.18V Peak, 2.95V RMS, 280mW |
MAXIMUM LEVEL @ 600R: | 7.72V Peak, 5.46V RMS, 100mW |
1/4” TRS JACK: | Tip (Left), Ring (Right) & Sleeve (Shield) |
USB-C High Speed:
BUS POWER: | ||
MIN REQUIREMENT: | 0.9A @ 5V | >=USB 3.0 Port |
MAX REQUIREMENT: | 1.5A @ 5V | USB-C: Provides higher headphone outputs levels |
No. of INPUT CHANNELS: | 2 (2 Analogue) | |
No. of OUTPUT CHANNELS: | 2 (2 Analogue) |
DSP MIXER LATENCY ROUND TRIP (in-to-out): | 44.1kHz | 0.65mS |
48.0kHz | 0.6mS | |
88.2kHz | 0.33mS | |
96.0kHz | 0.31mS |
