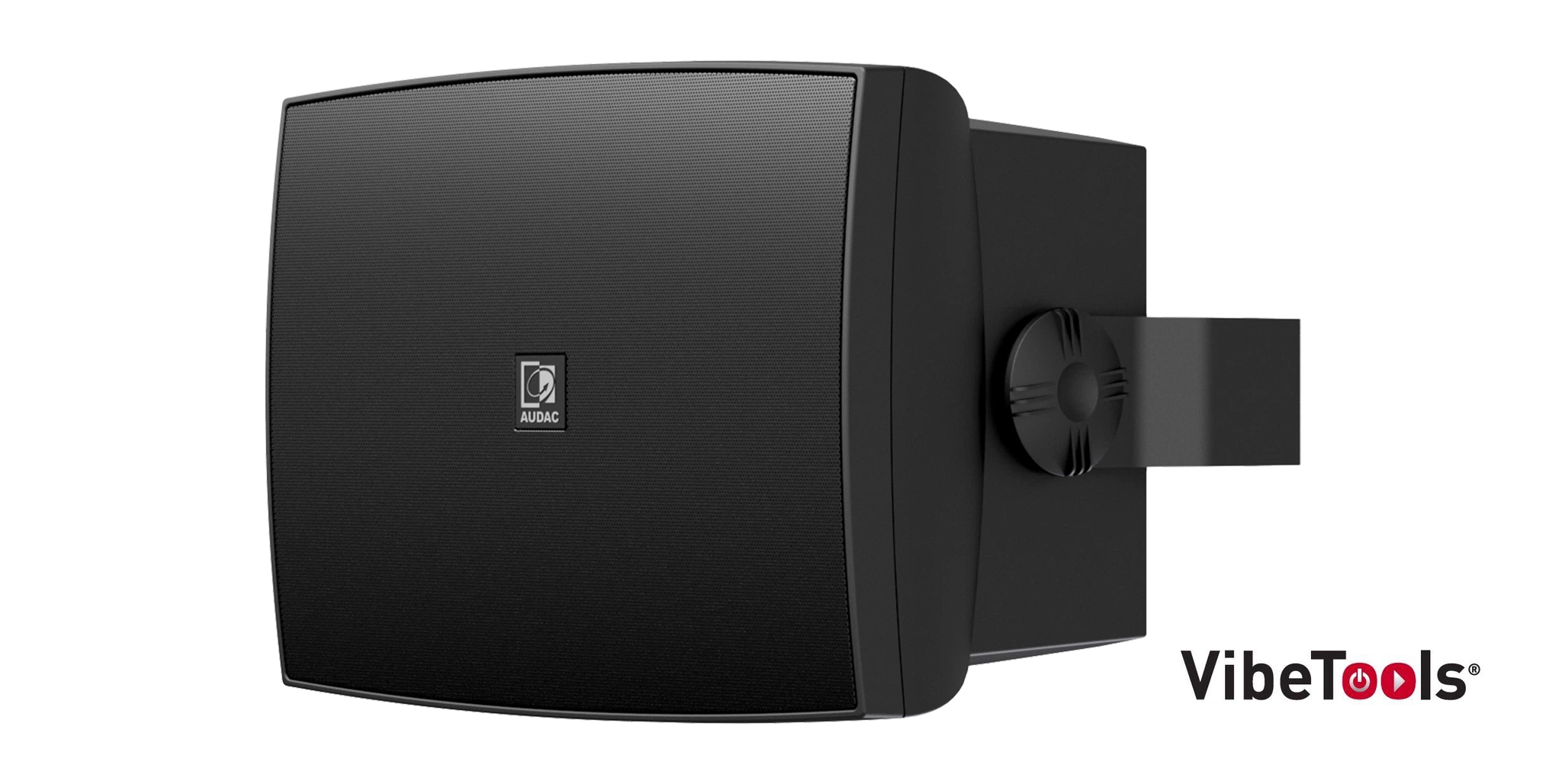

Audac WX802_O Outdoor Universal Wall Speaker 8"
Audac WX802_O Outdoor Universal Wall Speaker 8"
The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8” low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure.
The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally.
Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows letting the moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.
Technical specifications
| WX802MK2/OB | Outdoor black version |
| WX802MK2/OW | Outdoor white version |
| Speaker type | 2-way | |
| Peak power handling | 280 W | |
| Program power handling | 140 W | |
| RMS/AES power handling | 70 W | |
| Impedance | 16 Ω | |
| Sensitivity (1W/1m) | 89 dB | |
| Sound Pressure (Max. W/1m) | @ 16 Ω | 108 dB |
| @ 100 V | 106 dB | |
| Frequency | Response (± 3 dB) | 60 Hz - 17 kHz |
| Range (-10 dB) | 50 Hz - 20 kHz | |
| Crossover | Frequency | 2.4 kHz |
| Type | Passive built-in | |
| Dispersion | Horizontal | 110° |
| Vertical | 110° | |
| Ingress Protection rating | IP55 | |
| Connectors | Waterproof AWX-5 connector | |
| Drivers | HF | 1” |
| LF | 8” | |
| Line Transformer Tappings | 1 | 83 Ω - 100 V / Not used - 70 V / 60 W |
| 2 | 167 Ω - 100 V / 60 W - 70 V / 30 W | |
| 3 | 333 Ω - 100 V / 30 W - 70 V / 15 W | |
| Dimensions | 270 x 360 x 215 mm (W x H x D) | |
| Weight | 7.500 kg | |
| Operating temperature | -25 °C ~ 70 °C | |
| Construction | ABS | |
| Mounting & handling | Mounting bracket | |
| Front finish | Aluminium grill | |
| Colours | Black (RAL9005) (WX802MK2/OB) | |
| White (RAL9003) (WX802MK2/OW) | ||
| Accessories | Included | Mounting bracket |
| 5-pin connection cable (70 cm) AWC07 | ||
| Optional | AU570120005 - 5-pin cable 0.5 m | |
| AU570120025 - 5-pin cable 2.5 m | ||
| AU570120050 - 5-pin cable 5 m | ||
|
