Behringer WING Compact

• 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
• 13 motorized 100mm faders with powerful master fader sectionand 20 Custom buttons
• 10.1" main display with multitouch screen and adjustable swivel
• Unique Sends on Fader—Workflow with dedicated color TFT dfisplay and dedicated hot-keys to 44 Masters, Buses, Mains, Matrices, DCAs
• Integrated USB audio/MIDI interface for 48 audio channels in and out
• Dual-SD-card live recorder/player with up to 64 tracks and markers for identifying song positions
• Internal AoIP-module can upgrade the Ethernet ports with optional 64-channel audio in and out to Audinate Dante and Waves SoundGrid networks
• 16 true-stereo effect processing engines with 80+ world-class algorithms
• 3 plug-in slots for Gate, Dynamics, and EQ included in every channel. All without reducing any additional effect-processing headroom
• 4 main, 8 matrix, and 16 aux stereo buses featuring dual inserts, 8-band parametric EQs, stereo imager, and full dynamics processing, all in a single effect chain
• DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, and Studio One
• Offline editing and remote control via WING CoPilot, WING-Q, and WING-Edit Softwares for Desktop and Mobile

• 3 AES50 ports for a total of 144 input and output signals on SuperMac Cat 5 connections with ultralow jitter and 6-sample latency
• 40 stereo input channels with 5 variable plug-in processing slots each
• 8 stereo aux input channels with single FX insert slot, expander/limiter, and 4-band parametric EQ
• 8 Mute Groups and 8 DCAs for track grouping and consolidation
• 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante
• Rear-panel expansion slot can host optional 64-channel audio interface and networking expansion cards (e.g. Dante, WSG, MADI)
• StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
• 2-channel GPIO for controlling almost anything with WING
• 5-pin MIDI in and out for control and synchronization with external devices

Stereo or Mono—You Decide



• Set all channel and buses to mono, stereo, or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all

Superior Sound, Seamless Setup

• Give musicians an immersive experience of full stereo in-ear monitoring with WING's 16 stereo buses. You can also add stereo insert effects to any channel with just a single click

Limitless Potential

• WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo, or M/S format

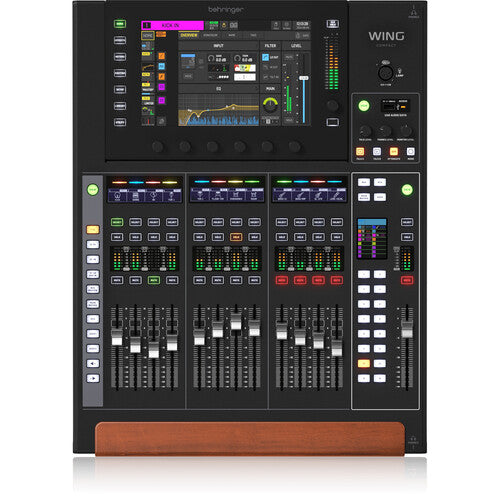

• WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications.
• Dedicated master and bus section, with 4 layers of 16 hotkeys clearly labeled on its own color display, is breaking new ground in terms of speed and overview.
• Large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.

24 Midas PRO Preamps Onboard



• Just like the venerable Midas M and PRO series mixers, WING COMPACT also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range.

All the Digital I/O

• It’s compact but uncompromising. The WING COMPACT has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, StageConnect—you name it.

• WING stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color, and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections onstage.
• Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 370+ inputs. It’s like having your own custom toolbox, where everything you need is perfectly organized and ready to use.

• Switch between artists on the fly
• Manage multiple play out destinations with streaming or video
• Navigate complex live events with distributed or networked I/O
• Use the built-in 64-track recorder for virtual sound checks or live playback
• Connect to the 48-track USB audio interface for perfect integration with your DAW

Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.

• WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA, D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor. No external gear is required.
• WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.

Record Up to 64 Channels



• The WING LIVE card comes preinstalled and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a prerecorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.

Swap Out External Cards with Ease

• You can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante network connectivity.

Plus Another 64x64 Channels via Internal AoIP Modules

• The internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission.

• Transfer 32 channels of 44.1 kHz / 48 kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.
• Use a standard XLR mic cable for short connection, like connecting your side rack or internal rack connections.
• Using a regular 3-pin XLR DMX cable allows for long cable runs of over 30m (100 feet).

CoPilot



• Remote mixing for tablets

WING Q

• Monitor mixing tailored for musicians

LiveSessions

• Convert multitrack recordings or prepare playback sessions

StageConnect Configurator

• Calculate routing, cable lengths, and power needs

WING EDIT

• Remote and offline mixing control
